Kanexpro UltraSlim 4K/30 HDMI® Extender over HDBaseT™- 230ft. (70m)
MPN: EXT-HDBT70M

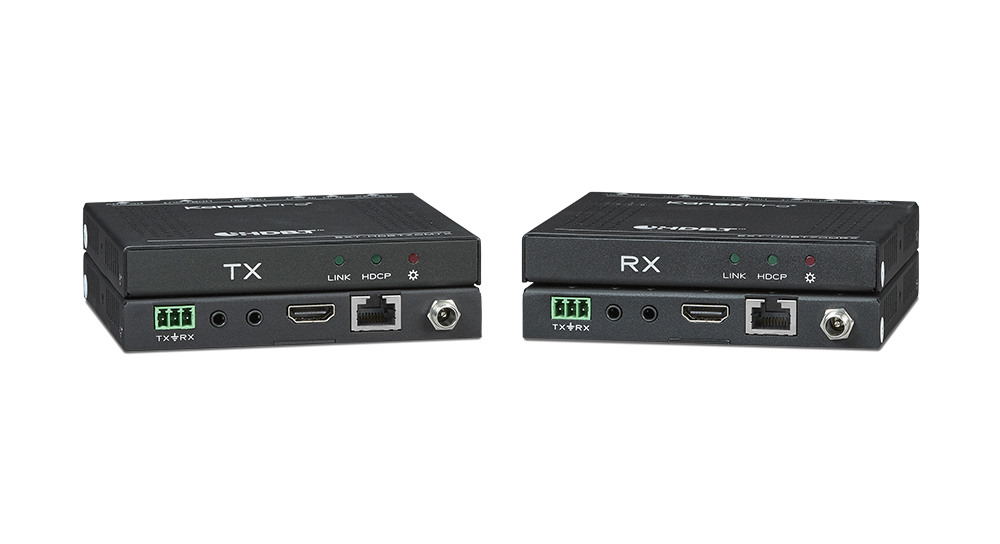

The KanexPro EXT-HDBT70M is an UltraSlim, HDCP 2.2 compliant extender set consisting of a transmitter and receiver.

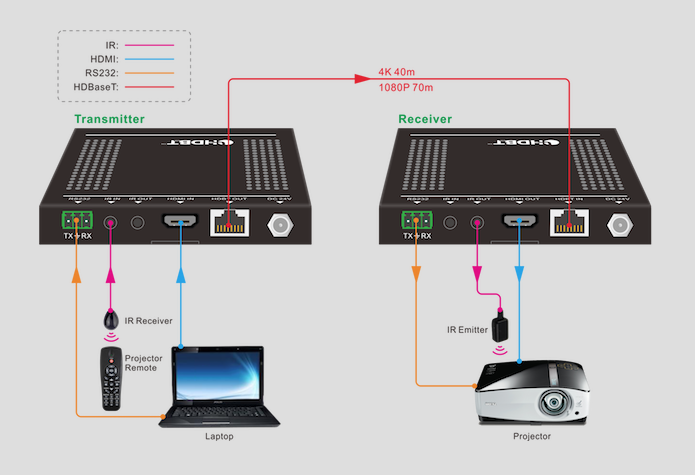

It uses HDBaseT technology to transmit uncompressed, high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at a distance of up to 70/40m.

The extender set supports CEC, bi- directional RS232 & IR control, and bi-directional PoH (power over HDBaseT) function.


Kanexpro UltraSlim 4K/30 HDMI® Extender over HDBaseT™- 230ft. (70m) Features

  • UltraSlim point-to-point HDMI extender

  • Extend full HD 1080p up to 70m

  • Extend 4K/30 up to 40m

  • Supports Ultra HD 4K@30Hz resolutions

  • Video resolutions from 1080p/60@48bit

  • Bi-directional PoH

  • HDCP 2.2 and EDID compliant

  • Bandwidth 10.2 Gbps

  • Bi-directional RS-232 & IR control

  • Supports CEC/IR/RS-232 pass-thru

  • IR input/output

  • Dolby TrueHD & DTS Master Audio ready

  • Supports uncompressed audio

  • Includes separate mounting ears

  • One locking power supply included

  • Backed by KanexPro 3-year parts



  • Please Note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.
