PT. Auto ID Indonesia - KanexPro HDMX44-18G

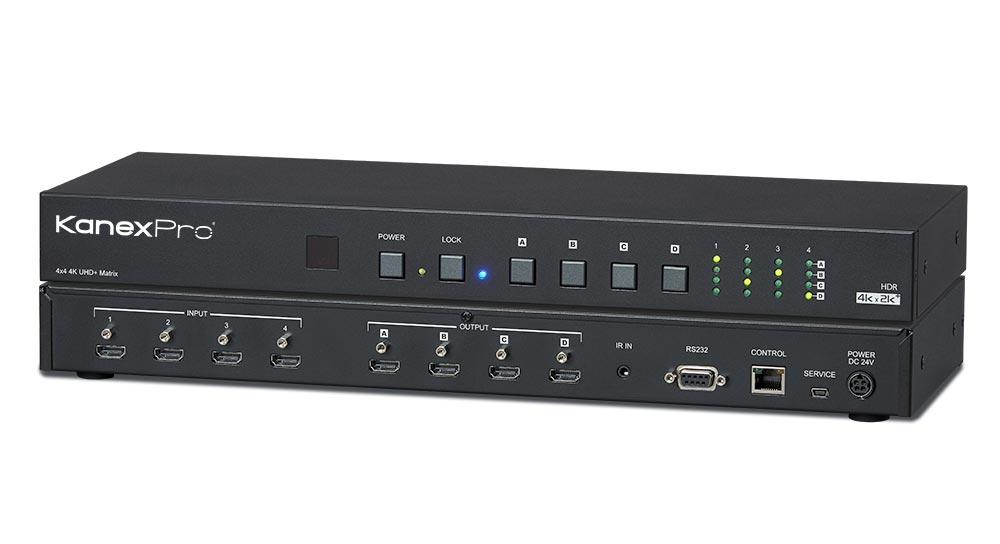

The KanexPro HDMX44-18G is a professional 4-in and 4-out HDMI matrix featuring HDCP 2.2 and the latest HDMI 2.0 specifications supporting ultra HD resolutions up to 4K @60Hz.

Each HDMI port provisions full bandwidth of 18 Gbps with HDR and Dolby Vision pass-through.

It can be fully controlled via RS-232, IR and Web based GUI using Ethernet where end-users can switch, control and manage the matrix right from the computer or any 3rd party touch-panel or a control system.

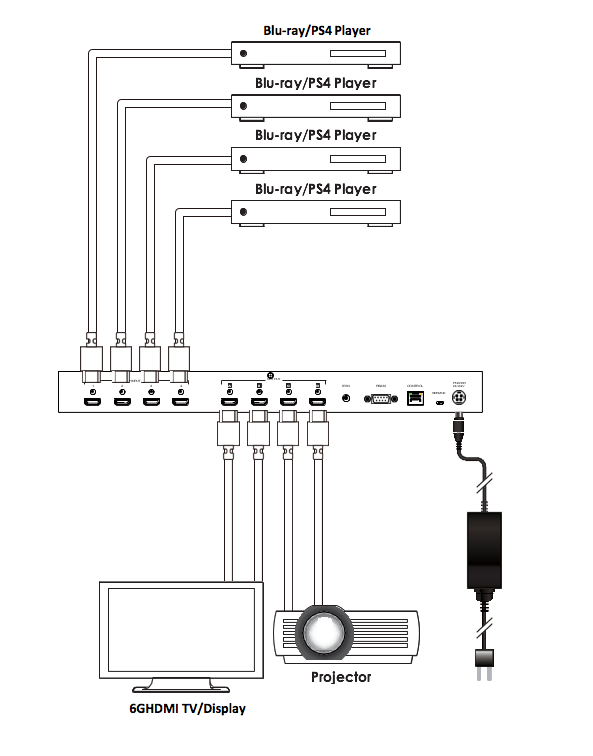

Cross-switch 4 HDMI devices

Distribute 4Kx2K@60Hz

4K & UHDTV resolutions

True4K @ 4096x2160@60Hz

Supports Dolby Vision & HDR pass-thru

Supports 48-bit Deep Color

Supports LPCM 7.1 pass-thru bit stream

HD bit stream audio formats over HDMI

HDCP 1.4 & 2.2 Compliant

Powerful EDID management tools

Control via front-panel buttons

Front-panel LED

Firmware upgrade via micro USB port

Locking HDMI connector screws

Universal RS-232 code

Internal Universal power for worldwide

Backed by KanexPro 3 Year parts

Applications:
Perfect for whole house distribution systems and house of worship centers as well as corporate boardrooms where swift, reliable switching and distribution of 4K/60 HDMI signals are critical to meet pixel-by-pixel needs with HDR.
