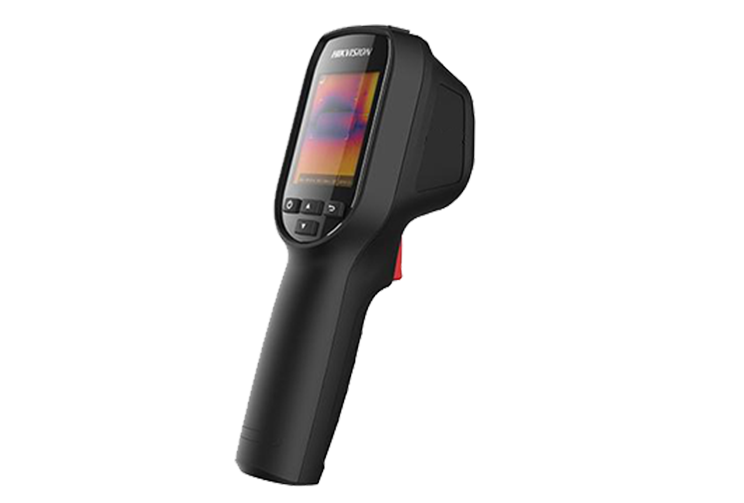

Handheld Body Temperature Solution


Handheld thermal camera, specially designed for body temperature measurement. It’s equipped with a 160 × 120 resolution thermal detector which helps to quickly detect fever.

Key Features:
» 160 × 120 resolution.
» Thermographic accuracy up to ±0.5 °C.
» 320 × 240 resolution 2.4" LCD display
» Built-in rechargeable Li-ion battery
» Up to 8 hours continuous running

Advantages:
High Efficiency: It takes only one second that thermal camera can detect temperature of each person. Thus, no congestion will be made when passing through the site where temperature needs to check.

Safety: Thermal camera supports non-contact temperature measurement which can achieve accurately measuring temperature around 1 meter away. That reduces the risk of infection coming from physical contact.

Specification

Handheld Body Temperature Scanner
Image SensorUncooled Focal Plane Arrays
Max. Resolution160 × 120
Pixel Interval17μm
Response Waveband8 μm to 14 μm
NETD (Noise Equivalent Temperature Difference)≤ 40 mk (@25 °C, F# = 1.0)
Lens (Focal Length)3.1 mm
IFOV5.48 mrad
Field of View37.2° × 50°
Min. Focusing Distance≥ 150 mm
ApertureF1.1
Temperature Measurement3 thermometry points: Max. Temperature; Min. Temperature; Center Temperature
Temperature Range30°C to 45 °C
Temperature Accuracy±0.5°C
Power Consumption3.7 V DC/0.4 A
Battery TypeRechargeable Lithium Battery
Battery Operating Time8 hours continuous running
StorageReplaceable memory card (default 8G, support up to 128G storage)
WeightApprox. less than 350 g (0.77 lb)
Protection levelIP54
